In the evolving landscape of manufacturing and production, optimizing factory layouts and workflows is essential for cost savings, increased efficiency and agile adaptation to industry changes. Factory simulation has become a critical component of modern manufacturing strategies, allowing companies to visualize, test and refine production systems in a virtual environment before physical implementation.
Within the 3DEXPERIENCE platform, the Factory Simulation Engineer role empowers engineers to design, simulate and analyze factory operations in an intuitive 3D setting that is seamlessly integrated with SOLIDWORKS. This overview explores how the Factory Simulation Engineer role serves as a bridge between traditional design and advanced factory optimization. It will show how the role offers immense value to manufacturing engineers — especially those already familiar with SOLIDWORKS.
What is the Factory Simulation Engineer role?
A Factory Simulation Engineer specializes in optimizing factory layouts and production workflows through simulation and manufacturing engineering. This role is vital for enhancing efficiency and cost-effectiveness in modern production processes. Using advanced simulation software, like those available on the 3DEXPERIENCE platform, these engineers create virtual models of manufacturing environments to evaluate production scenarios, improve operational performance, identify bottlenecks and validate design choices before physical implementation.
This role includes access to 24 applications on the 3DEXPERIENCE platform. It is also designed to enhance various aspects of factory simulation and layout design. Among these apps, Plant Layout Design and Factory Simulation are among the most important to this role. This is because they enable engineers to create efficient factory layouts and analyze material flows comprehensively. As a result, it’s important for SOLIDWORKS users to learn how these tools integrate with SOLIDWORKS and how this synergy facilitates seamless design and simulation processes.
Overview of the applications available from the Factory Simulation Engineer role. (Image: Dassault Systèmes.)
Key Features of the Factory Simulation Engineer role:
- Create and import layouts: Make new, or bring in current, factory layouts.
- See material flow: See how materials move through the factory.
- Predict performance: Predict production speed, how much equipment is used and where problems might happen.
- Improve layouts: Make better layouts, plan paths for materials and organize maintenance and shifts.
- Simulate random events and what-if scenarios: Users can mimic unexpected events, like machine breakdowns or missing parts, and test new setups.
- Model behavior: See how robots and people move and act in the factory.
- Manage AGV Traffic: Manage the movement of automated guided vehicles (AGVs) safely.
- Track and report KPIs: Monitor performance measures and share reports.
Who uses the Factory Simulation Engineer role:
- Designers of factory layouts and equipment.
- Manufacturing engineers who improve production processes.
- Process planners focused on workflow.
- Industrial engineers who optimize systems.
What is the Plant Layout Design app?
The Plant Layout Design app is a crucial component of the Factory Simulation Engineer role. It enables engineers to create and optimize factory layouts in a collaborative 3D environment. This app allows users to:
- Design realistic layouts by defining the positions of equipment and workstations.
- Visualize the spatial relationships and flow of materials within the factory.
- Validate the layout against production requirements, ensuring efficiency and safety.
A key feature in Plant Layout Design is the ability to assess the footprint, or exact spacing of each component, machine or area occupied within the facility. Footprints are essential for optimizing space, boosting efficiency and enhancing material and personnel flow. The app also supports direct CAD file imports, like DXF, allowing designers to incorporate precise layouts with ease, paving the way for a streamlined manufacturing environment.
Importing a DXF file into the Plant Layout Design application. (Image: ChampionXperience.)
What is the Factory Simulation app?
The Factory Simulation app focuses on simulating material flows and production processes within the factory. It provides tools for:
- Analyzing how materials movethrough the production line to identify potential bottlenecks.
- Predicting the impact of different scenarios on production rates and resource utilization.
- Validating workflows to ensure that operations run smoothly and efficiently.
Overview of the Factory Simulation app interface. (Image: ChampionXperience.)
The below video offers a summary of Factory Simulation:
SOLIDWORKS and DELMIA Factory Simulation Engineer
The integration of SOLIDWORKS with DELMIA’s Factory Simulation Engineer role within the 3DEXPERIENCE platform is transformative. It enables SOLIDWORKS updates to be reflected in DELMIA simulations instantly — ensuring alignment across design and simulation activities. As a result, organizations can enhance collaboration, minimize lead times and respond swiftly to production changes.
For example, a furniture manufacturer launching a new product line can use this integration to maintain design consistency and analyze various factory layouts in real time. Changes in SOLIDWORKS are reflected in DELMIA simulations, allowing manufacturers to evaluate the impact of a design change on workflows, resources and production efficiency. This synergy ultimately drives profitability, accelerates time-to-market and reduces costs.
SOLIDWORKS CNC machine part saved to the cloud via the 3DEXPERIENCE platform. (Image: ChampionXperience.)
A standout feature of the Factory Simulation Engineer role is its seamless integration with SOLIDWORKS. For instance, a VF-4 4SS Haas CNC machine created in SOLIDWORKS can be saved directly to the cloud through the 3DEXPERIENCE platform. After saving, the machine can be imported into the DELMIA Plant Layout Design application.
Use Resources in Plant Layout
Within the Plant Layout Design app, designers can insert resources from a catalog, or directly from the 3DEXPERIENCE database, into the factory layout. Based on the assigned permissions, users may not have rights to modify all attributes of a resource, but they can:
- Create mechanical ports for connecting resources.
- Insert existing resources and adjust their parameters to fit the layout requirements.
This workflow makes resource management straightforward, allowing SOLIDWORKS users to move seamlessly between design and simulation tasks.
As demonstrated below, a CNC machine can be successfully imported into a factory layout.

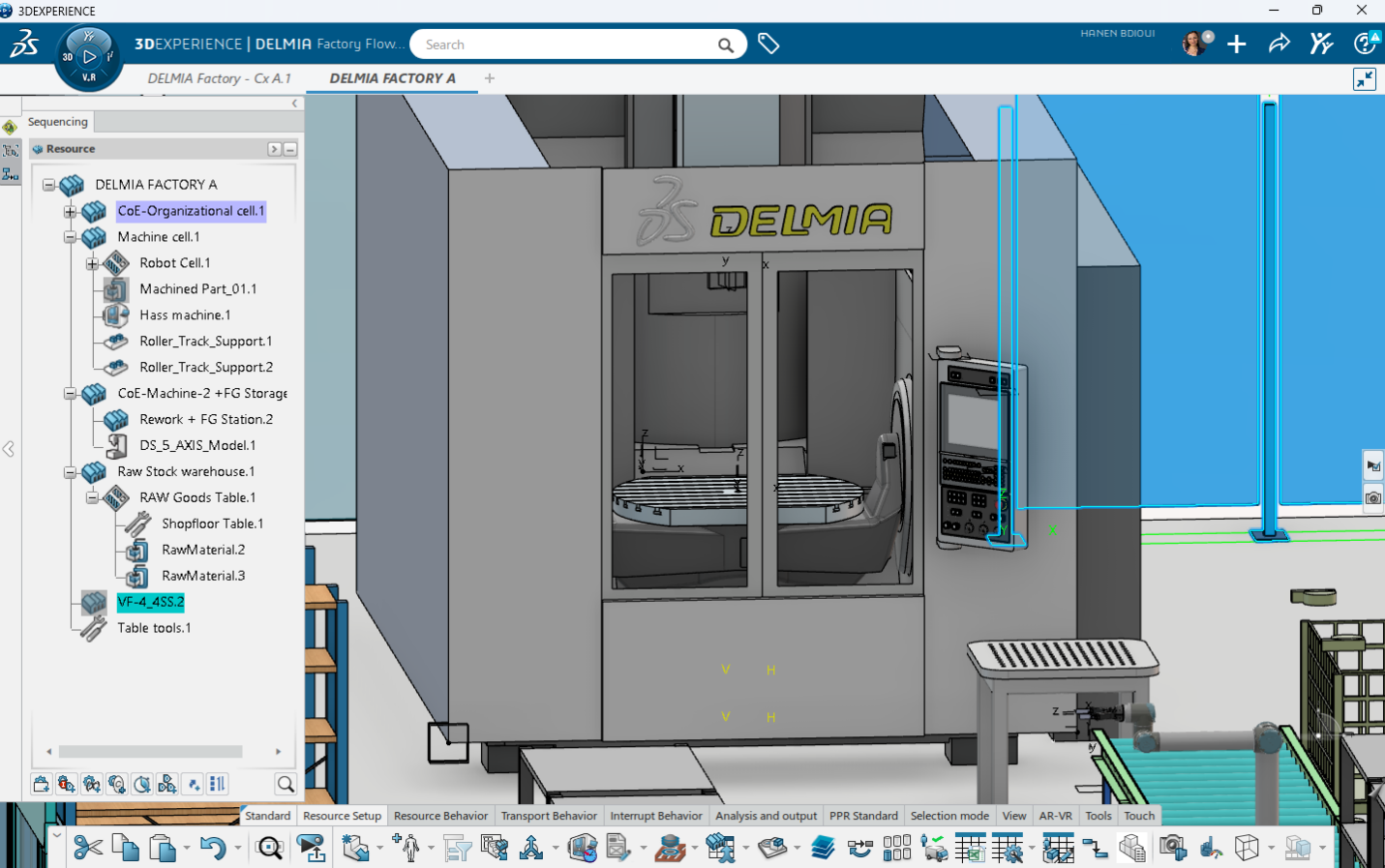

Imported CNC machine data in the DELMIA Plant Layout Design interface for visual reference. (Image: ChampionXperience.)
Resources in DELMIA
In DELMIA, resources are categorized into “Working” and “Non-Working” resources to define their roles in the production process.
- Working resources: These are programmable elements (such as NC machines, conveyors, workers and robots) that actively perform operations and move parts through the production line.
- Non-working resources: These provide support (like storage, products and transport equipment) without directly executing tasks.
On the 3DEXPERIENCE platform, Physical Products serve as the default objects, but they can be transformed into categorized resources. Users can do this in two ways:
- Use the “Generate a Resource” command to convert a Physical Product to the designated resource type. This change is permanent and cannot be reversed.
- Create a New Resource Object and nest the Physical Product within it, providing flexibility if you plan to reuse the same product as a different resource. Additionally, 3D Parts can be used instead of Physical Products for this purpose.

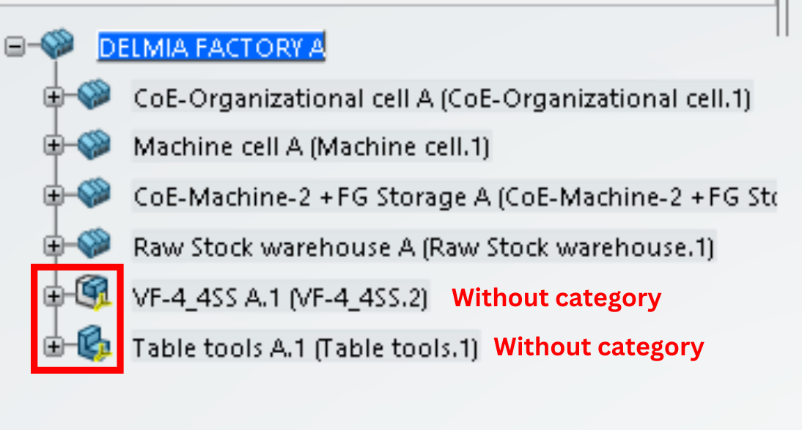

DELMIA Tree displaying CAD models of Physical Products imported from SOLIDWORKS without resource categorization. (Image: ChampionXperience.)
DELMIA Tree showing CAD models of Physical Products imported from SOLIDWORKS with resource categorization: CNC VF4 categorized as a Manufacturing Cell and the Table categorized as a Tool Element. (Image: ChampionXperience.)
Why the Factory Simulation Engineer role is important for SOLIDWORKS users
For SOLIDWORKS users, this integration opens a new level of functionality: it’s easy to import 3D CAD data into DELMIA’s factory library. By linking SOLIDWORKS models directly to the cloud, engineers can streamline workflows, ensure consistency in their 3D CAD data and eliminate redundant steps in model preparation. This connection enables factory layout and simulation tasks to be managed from one platform, accelerating the design-to-production timeline.
The Factory Simulation Engineer role on the 3DEXPERIENCE platform represents a powerful tool for enhancing factory design and simulation. With its seamless integration with SOLIDWORKS, engineers can efficiently design, optimize, and simulate production layouts, bringing their factory visions to life. As manufacturers adapt to Industry 4.0, the ability to simulate production processes in a 3D environment has become essential to maintaining competitiveness and achieving operational excellence. The Factory Simulation Engineer role is therefore not just a tool but a strategic asset, driving efficiency, cost savings and productivity across manufacturing operations.
